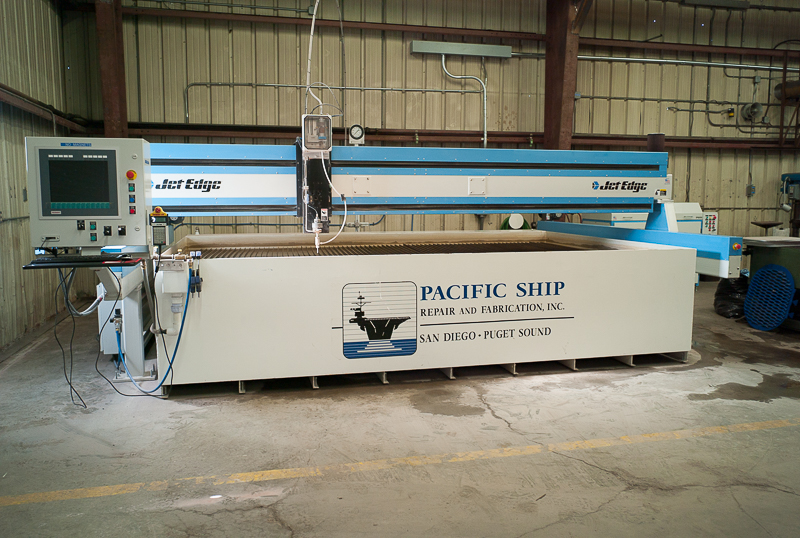

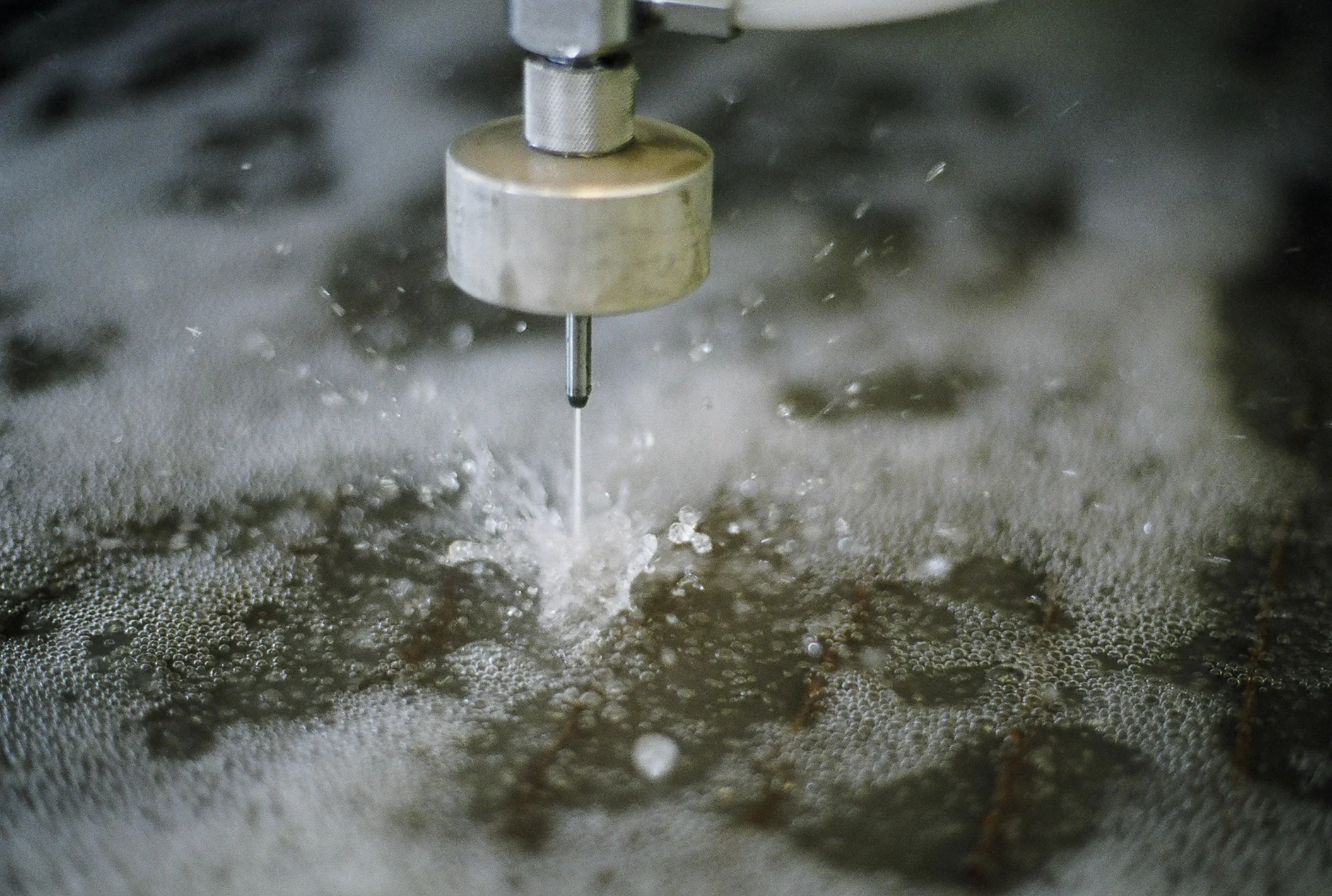

waterjet cutting
PACSHIP can accommodate any precision cutting needs ranging from decorative ceramic tile for home or commercial use to the hardest military armor plating.
PACSHIP offers precision abrasive waterjet cutting as well as high speed precision plasma and acedaline cutting services for both military and commercial applications.
plasma cutting
water jet
With the ability to cut and shape metals, plastic, stone, glass and composite materials ranging from .035” to 8.5” thick to a tolerance of +/-.0005”, PACSHIP is able to support your most complicated and high-tolerance projects.
At PACSHIP you will get:
• Personal attention to you and your project
• The highest levels of quality available (ISO 9001-20015)
• Competitive pricing
• Fast turnaround
• Environmental regulation compliance.
Advantages
PACSHIP’s waterjet services provide the following advantages:
• Precision non-contact cutting
• Minimal material waste
• Near-zero lateral cutting force
• Omni-directional cutting
• No heat-affected zone
• No work hardening or thermal stress
• No finishing operations required
• Material sizes up to 8’x13’
plasma cutting

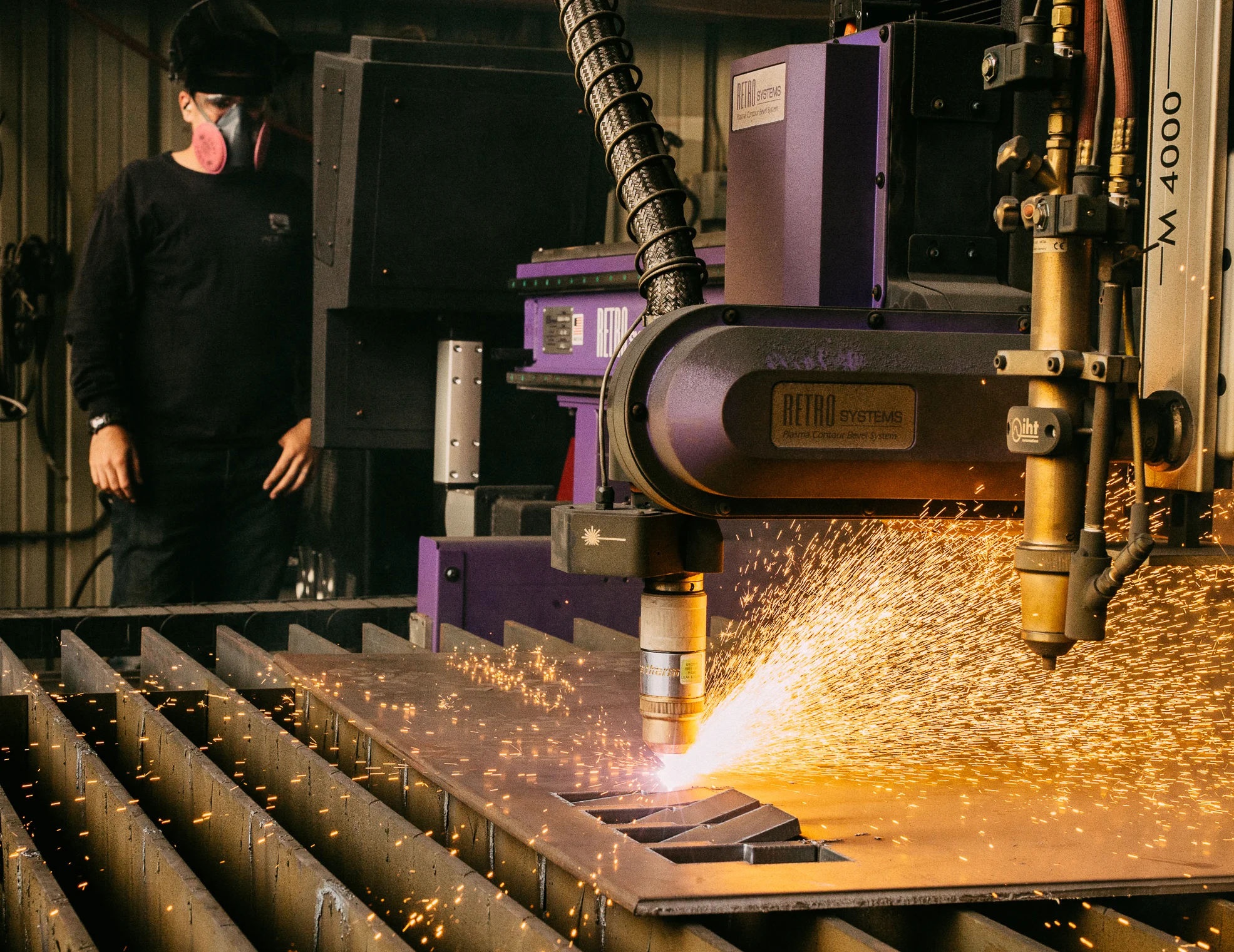

PACSHIP’s plasma machine is a Retro System Hornet xd with a 10ftx20ft cutting area
The Hornet xd cnc plasma cutting machine is configured wih hypertherm hpr260xd automatic gascontrol plasma system(30 to 260 amps): hypertherm edge connect cnc control: hypertherm true hole, and hypertherm plasma height control technology.It has a maximum production capability of: mild steel-peirce 11/2, cut 21/2, stainless steel- peirce 1 1/4 , cut 2 , aluminum peirce 1 cut 2
The Hornet xd is also fitted with two harris 198-2ft oxy-fuel torches and electronic high capacity hi- low preheat assembly providing a production cut capability of up to 15".
